GrandAire 1.5 Ton 15.2 Seer Package unit
Description

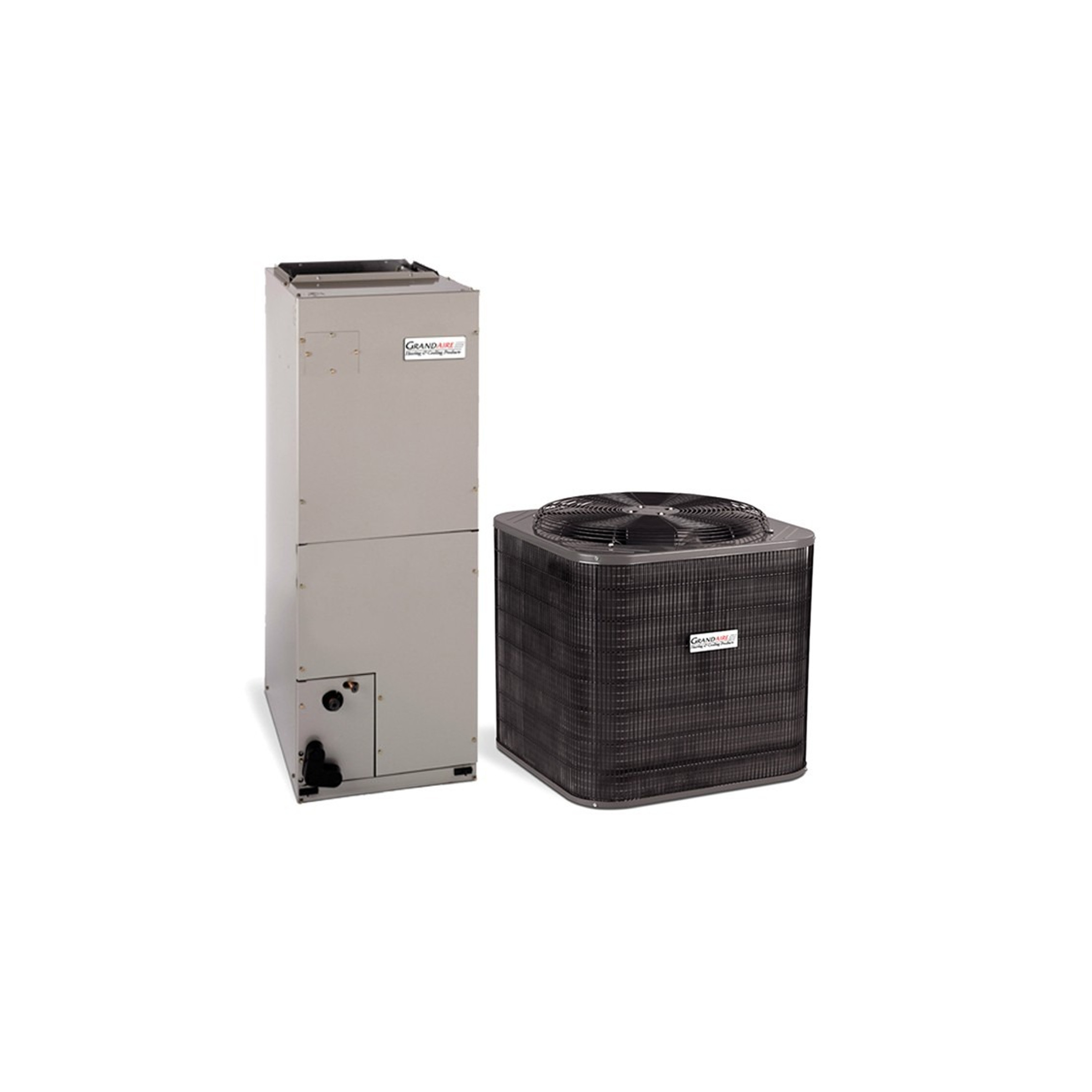

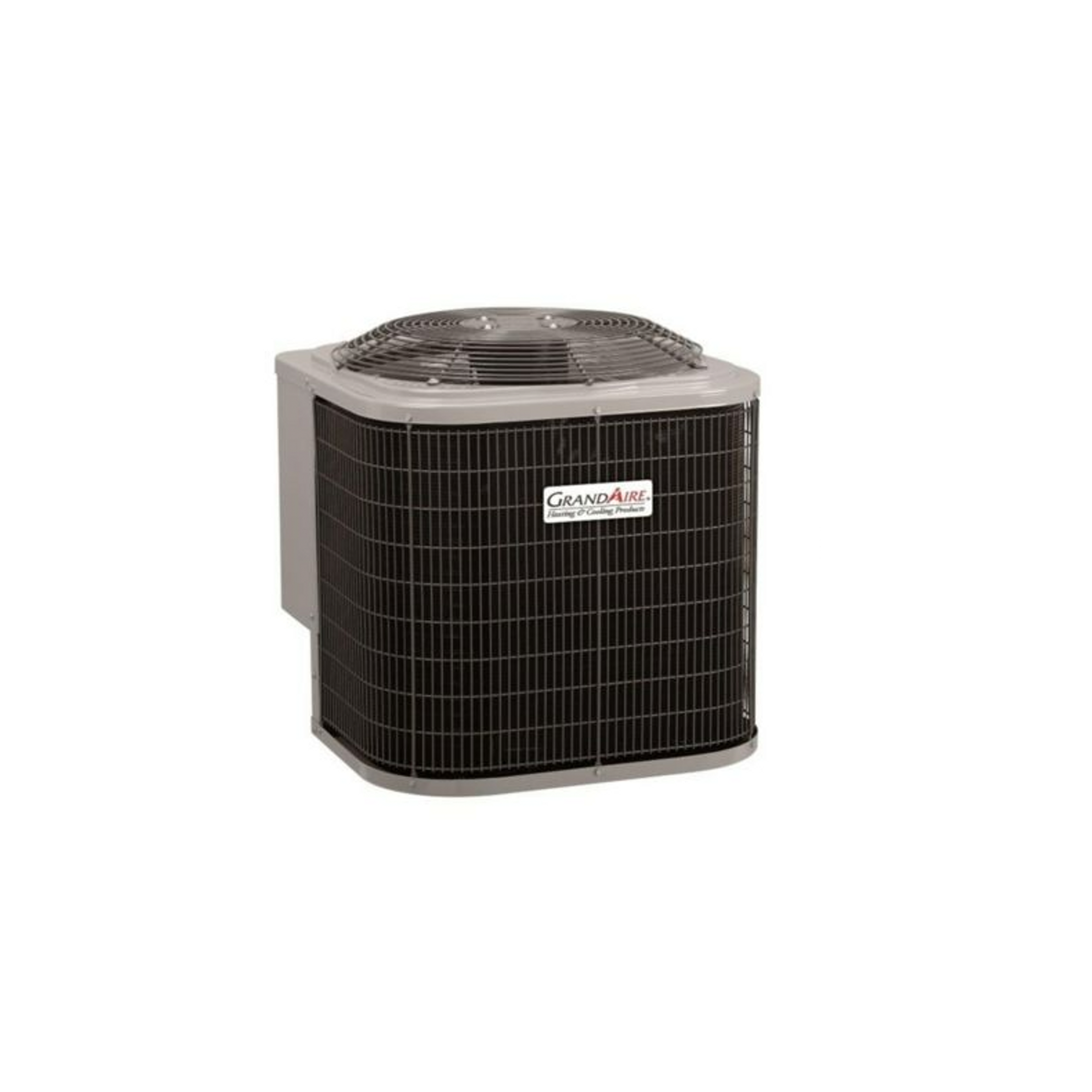

W4A5S Single-Stage Split-System Air Conditioner with R-410A Refrigerant 1-1/2 To 5 Tons
Efficiency
13.8 - 16.0 SEER2 (14 - 16.5 SEER)
11.2- 13.0 EER2 (11.2 - 13.0 EER)
Indoor air quality accessories available
Reliability
R-410A refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Durability
Protection Package:
Solid, durable sheet metal construction
Dense wire coil guard
Applications
Long-line- up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.
Limited Warranty*
1 year unit replacement limited warranty
10 year parts limited warranty (including compressor and coil) with timely registration.
5 year parts limited warranty if not registered within 90 days of original installation.
* See warranty certificate for details and restrictions.
California residents: see Proposition 65 Warning
Features and Specification
Weight 125
AHRI - Usage Outdoor
Brand GrandAire
CBU - Compressor Bearing Unit Yes CFM 2,050
Condenser Motor HP 1/12 HP
Condenser Motor RPM 1,100
Condenser Motor Speeds 1 (Single)
Condenser Motor Type PSC (Permanent Split Capacitor)
Cooling Capacity 18,000
Cubic Measurement 12.25
Cycle/Hertz 60 Hz
EER 11.2-13
EER2 11.2-13
Energy Star Rated No
Equipment Type Straight Cool
ETL Listed No
Fins per Inch (FPI) 25
Full Load Amps 0.4
Height 28.6875
Inverter No
Length 25.75
Liquid Line Fitting Type Sweat or Braze
Liquid Line Size (OD) 3/8"
Locked Rotor Amps (LRA) 42.6
Maximum Piping Length 250'
OPT Code 1PW4A5S18AKAWA
Phase Single
Product Family W4A5S
Prop 65 Yes
Rated Load Amps (RLA) 8.8
Refrigerant R-410A
SEER 15
SEER2 14.3
Sound Level (dBA) 75
Suction Line Fitting Type Sweat or Braze
Suction Line Size (OD) 3/4"
Tonnage 1.5
UL Listed No
UOM EA UPC See Optical
Voltage 208-230 VAC
Width 25.75
Maximum Overcurrent Protection (MOCP) 20
Compressor Type Scroll
Country of Origin MEX
Substantial Commodity Steel; Copper; Aluminum
Description
W4A5S Single-Stage Split-System Air Conditioner with R-410A Refrigerant 1-1/2 To 5 Tons
Efficiency
13.8 - 16.0 SEER2 (14 - 16.5 SEER)
11.2- 13.0 EER2 (11.2 - 13.0 EER)
Indoor air quality accessories available
Reliability
R-410A refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Durability
Protection Package:
Solid, durable sheet metal construction
Dense wire coil guard
Applications
Long-line- up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.
Limited Warranty*
1 year unit replacement limited warranty
10 year parts limited warranty (including compressor and coil) with timely registration.
5 year parts limited warranty if not registered within 90 days of original installation.
* See warranty certificate for details and restrictions.
California residents: see Proposition 65 Warning
Features and Specification
Weight 125
AHRI - Usage Outdoor
Brand GrandAire
CBU - Compressor Bearing Unit Yes CFM 2,050
Condenser Motor HP 1/12 HP
Condenser Motor RPM 1,100
Condenser Motor Speeds 1 (Single)
Condenser Motor Type PSC (Permanent Split Capacitor)
Cooling Capacity 18,000
Cubic Measurement 12.25
Cycle/Hertz 60 Hz
EER 11.2-13
EER2 11.2-13
Energy Star Rated No
Equipment Type Straight Cool
ETL Listed No
Fins per Inch (FPI) 25
Full Load Amps 0.4
Height 28.6875
Inverter No
Length 25.75
Liquid Line Fitting Type Sweat or Braze
Liquid Line Size (OD) 3/8"
Locked Rotor Amps (LRA) 42.6
Maximum Piping Length 250'
OPT Code 1PW4A5S18AKAWA
Phase Single
Product Family W4A5S
Prop 65 Yes
Rated Load Amps (RLA) 8.8
Refrigerant R-410A
SEER 15
SEER2 14.3
Sound Level (dBA) 75
Suction Line Fitting Type Sweat or Braze
Suction Line Size (OD) 3/4"
Tonnage 1.5
UL Listed No
UOM EA UPC See Optical
Voltage 208-230 VAC
Width 25.75
Maximum Overcurrent Protection (MOCP) 20
Compressor Type Scroll
Country of Origin MEX
Substantial Commodity Steel; Copper; Aluminum
Description
W4A5S Single-Stage Split-System Air Conditioner with R-410A Refrigerant 1-1/2 To 5 Tons
Efficiency
13.8 - 16.0 SEER2 (14 - 16.5 SEER)
11.2- 13.0 EER2 (11.2 - 13.0 EER)
Indoor air quality accessories available
Reliability
R-410A refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Durability
Protection Package:
Solid, durable sheet metal construction
Dense wire coil guard
Applications
Long-line- up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.
Limited Warranty*
1 year unit replacement limited warranty
10 year parts limited warranty (including compressor and coil) with timely registration.
5 year parts limited warranty if not registered within 90 days of original installation.
* See warranty certificate for details and restrictions.
California residents: see Proposition 65 Warning
Features and Specification
Weight 125
AHRI - Usage Outdoor
Brand GrandAire
CBU - Compressor Bearing Unit Yes CFM 2,050
Condenser Motor HP 1/12 HP
Condenser Motor RPM 1,100
Condenser Motor Speeds 1 (Single)
Condenser Motor Type PSC (Permanent Split Capacitor)
Cooling Capacity 18,000
Cubic Measurement 12.25
Cycle/Hertz 60 Hz
EER 11.2-13
EER2 11.2-13
Energy Star Rated No
Equipment Type Straight Cool
ETL Listed No
Fins per Inch (FPI) 25
Full Load Amps 0.4
Height 28.6875
Inverter No
Length 25.75
Liquid Line Fitting Type Sweat or Braze
Liquid Line Size (OD) 3/8"
Locked Rotor Amps (LRA) 42.6
Maximum Piping Length 250'
OPT Code 1PW4A5S18AKAWA
Phase Single
Product Family W4A5S
Prop 65 Yes
Rated Load Amps (RLA) 8.8
Refrigerant R-410A
SEER 15
SEER2 14.3
Sound Level (dBA) 75
Suction Line Fitting Type Sweat or Braze
Suction Line Size (OD) 3/4"
Tonnage 1.5
UL Listed No
UOM EA UPC See Optical
Voltage 208-230 VAC
Width 25.75
Maximum Overcurrent Protection (MOCP) 20
Compressor Type Scroll
Country of Origin MEX
Substantial Commodity Steel; Copper; Aluminum
Features and Specification
Weight 136
AHRI - Usage Outdoor
Brand GrandAire CBU - Compressor Bearing Unit Yes
CFM 2,600
Condenser Motor HP 1/10 HP Condenser Motor RPM 1,100
Condenser Motor Speeds 1 (Single)
Condenser Motor Type PSC (Permanent Split Capacitor)
Cubic Measurement 15.3995
Cycle/Hertz 60 Hz
EER 11.2-13
EER2 11.2-13
Energy Star Rated Yes
Equipment Type Straight Cool
ETL Listed No
Fins per Inch (FPI) 25
Full Load Amps 0.6
Height 35.5
Inverter No
Length 25.75
Liquid Line Fitting Type Sweat or Braze
Liquid Line Size (OD) 3/8"
Locked Rotor Amps (LRA) 49.7
Maximum Piping Length 250'
OPT Code 1PW4A5S24AKAWA
Phase Single
Product Family W4A5S
Prop 65 Yes
Rated Load Amps (RLA) 9.3
Refrigerant R-410A
SEER 15
SEER2 14.3
Sound Level (dBA) 73
Stage Single
Suction Line Fitting Type Sweat or Braze
Suction Line Size (OD) 3/4"
Tonnage 2.5
UL Listed Yes
UOM EA UPC See Optical
Voltage 208-230 VAC
Width 25.75
Maximum Overcurrent Protection (MOCP) 20
Compressor Type Scroll
Country of Origin MEX
Substantial Commodity Steel; Copper; Aluminum
★★★★★
